Add Google Oauth2 login in your flask web app

This post explains how to add Google Oauth2 login in a Flask web app using the requests-oauthlib package for OAuth 2.0 and flask-sqlalchemy.

To get started, first we have to create a project in Google Developers Console to get client key and secret.

Creating a Google project

First go to Google Developers Console. Sign in using your Google credentials if you haven’t already. There will be a list of projects(if you have previously created any).
Click on Create Project to create a new project.
Provide a project name in the dialog box and press enter. For explanation purposes, lets say the project name is test-project-123xyz. test-project-123xyz will appear in the list of projects after creation.

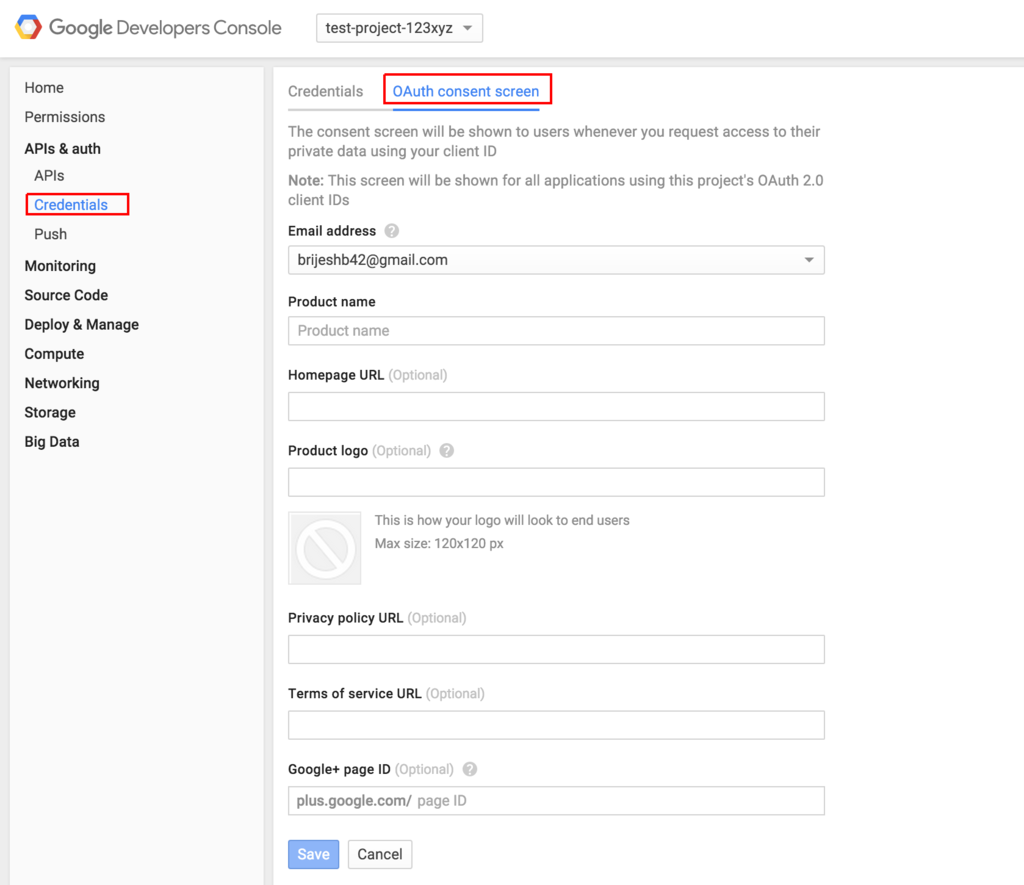

Now go to the project page. Click APIs and Auth -> Credentials in the sidebar. Then goto the OAuth Consent Screen. Provide the Product Name(you can also provide other details but they are optional). Product Name is what users see when they are logging into your application using Google.
Now click on the Credentials part of the same page. Then click on Add Credentials and then select OAuth 2.0 client ID.

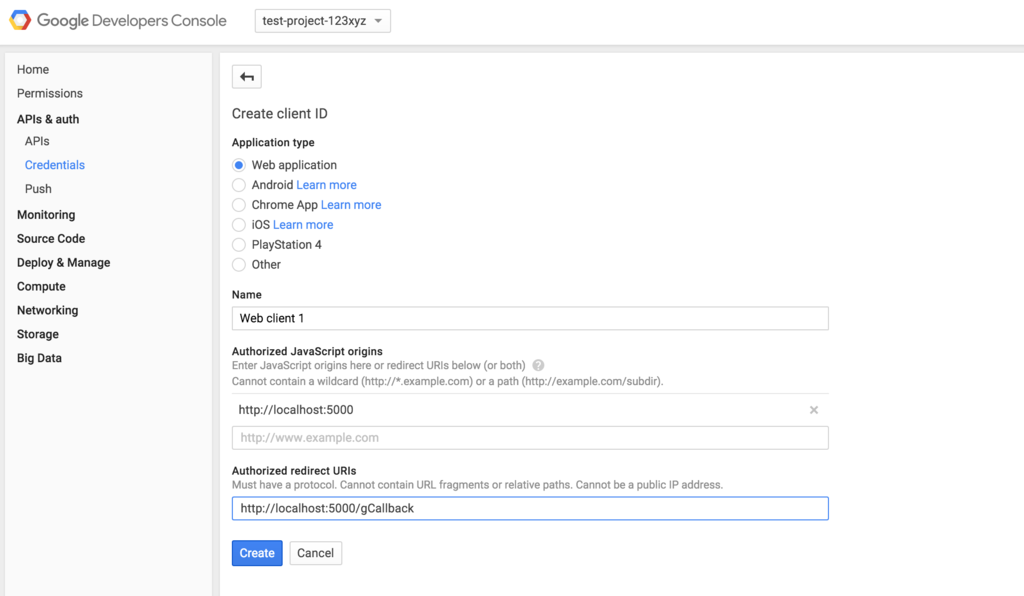

Select Application Type as Web Application, Provide a Name, Authorized Javascript origins and Authorized redirect URIs and click on Create. During development, we will use localhost as our URL. Later, for production, we can add our original URL. The redirect URIs is important here as this is the URL the users will be redirected to after Google Login. Make sure that all the urls use https protocol as OAuth2 supports only https.

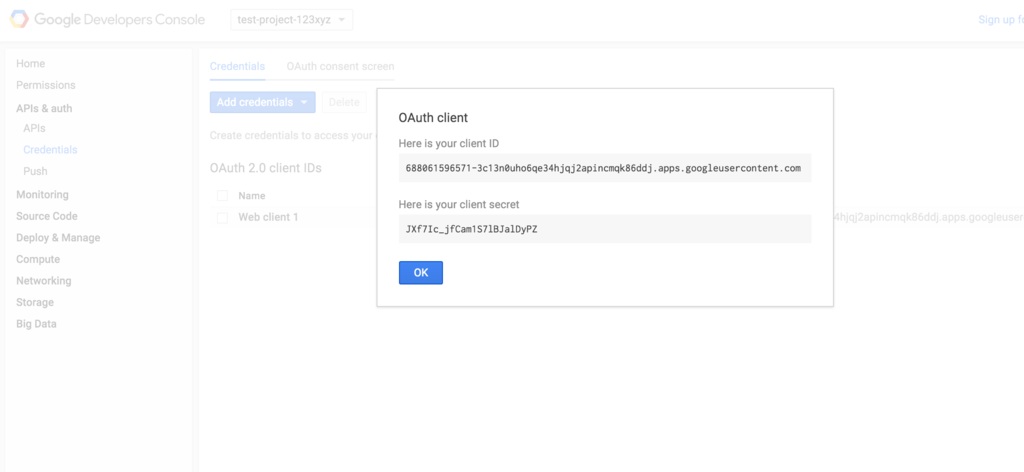

After the above step, you will be presented with a dialog box having your client ID and client secret. Copy both the strings and save in a text file as we will be needing these later.

Creating a User table in Database

We will be using flask-sqlalchemy to handle DB operations. This is what our User table looks like.

1
2
3
4
5
6
7
8
9
class User(db.Model):
    __tablename__ = "users"
    id = db.Column(db.Integer, primary_key=True)
    email = db.Column(db.String(100), unique=True, nullable=False)
    name = db.Column(db.String(100), nullable=True)
    avatar = db.Column(db.String(200))
    active = db.Column(db.Boolean, default=False)
    tokens = db.Column(db.Text)
    created_at = db.Column(db.DateTime, default=datetime.datetime.utcnow())

The tokens column stores the access and refresh tokens JSON, dumped as string.

Creating configuration for our app.

If using flask-login to manage user sessions, we can check whether a user is logged in or not. If not logged in, we redirect the user to a login page that contains the link to Google login. Lets create a config.py that has our Google OAuth credentials and our app configuration.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
import os

basedir = os.path.abspath(os.path.dirname(__file__))


class Auth:
    CLIENT_ID = ('688061596571-3c13n0uho6qe34hjqj2apincmqk86ddj'
                 '.apps.googleusercontent.com')
    CLIENT_SECRET = 'JXf7Ic_jfCam1S7lBJalDyPZ'
    REDIRECT_URI = 'https://localhost:5000/gCallback'
    AUTH_URI = 'https://accounts.google.com/o/oauth2/auth'
    TOKEN_URI = 'https://accounts.google.com/o/oauth2/token'
    USER_INFO = 'https://www.googleapis.com/userinfo/v2/me'


class Config:
    APP_NAME = "Test Google Login"
    SECRET_KEY = os.environ.get("SECRET_KEY") or "somethingsecret"


class DevConfig(Config):
    DEBUG = True
    SQLALCHEMY_DATABASE_URI = 'sqlite:///' + os.path.join(basedir, "test.db")


class ProdConfig(Config):
    DEBUG = True
    SQLALCHEMY_DATABASE_URI = 'sqlite:///' + os.path.join(basedir, "prod.db")


config = {
    "dev": DevConfig,
    "prod": ProdConfig,
    "default": DevConfig
}

Here,

REDIRECT_URI is what we set in Google Developers Console,
AUTH_URI is where the user is taken to for Google login,
TOKEN_URI is used to exchange a temporary token for an access_token and
USER_INFO is the URL used for retrieving user information like name, email, etc after successful authentication.
SCOPE is the types of user information that we will be accessing after the user authenticates our app. Google OAuth2 Playground has a list of scopes that can be added.

After the configuration is done, we have to create a Flask app, load configurations and finally define our routes.

1
2
3
4
5
6
app = Flask(__name__)
app.config.from_object(config['dev'])
db = SQLAlchemy(app)
login_manager = LoginManager(app)
login_manager.login_view = "login"
login_manager.session_protection = "strong"

`requests_oauthlib.OAuth2Session` helper:

We create a helper function get_google_auth that we will use to create OAuth2Session object based on the arguments provided.

1
2
3
4
5
6
7
8
9
10
11
12
13
def get_google_auth(state=None, token=None):
    if token:
        return OAuth2Session(Auth.CLIENT_ID, token=token)
    if state:
        return OAuth2Session(
            Auth.CLIENT_ID,
            state=state,
            redirect_uri=Auth.REDIRECT_URI)
    oauth = OAuth2Session(
        Auth.CLIENT_ID,
        redirect_uri=Auth.REDIRECT_URI,
        scope=Auth.SCOPE)
    return oauth

When none of the parameters are provided, e.g. google = get_google_auth(), it creates a new OAuth2Session with a new state.
If state is provided, that means we have to get a token.
If token is provided, that means we only have to get an access_token and this is the final step.

Root URL:

1
2
3
4
@app.route('/')
@login_required
def index():
    return render_template('index.html')

This route is only served to logged in user. If a user is not logged in, they are redirected to login route as set previously using login_manager.login_view = "login".

1
2
3
4
5
6
7
8
9
@app.route('/login')
def login():
    if current_user.is_authenticated:
        return redirect(url_for('index'))
    google = get_google_auth()
    auth_url, state = google.authorization_url(
        Auth.AUTH_URI, access_type='offline')
    session['oauth_state'] = state
    return render_template('login.html', auth_url=auth_url)

Here we save the value of state in cookie using session['oauth_state'] = state to be used later.

Callback URL:

Here, the route gCallback must be the same as we mentioned in our project page in Google Developers Console.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
@app.route('/gCallback')
def callback():
    # Redirect user to home page if already logged in.
    if current_user is not None and current_user.is_authenticated:
        return redirect(url_for('index'))
    if 'error' in request.args:
        if request.args.get('error') == 'access_denied':
            return 'You denied access.'
        return 'Error encountered.'
    if 'code' not in request.args and 'state' not in request.args:
        return redirect(url_for('login'))
    else:
        # Execution reaches here when user has
        # successfully authenticated our app.
        google = get_google_auth(state=session['oauth_state'])
        try:
            token = google.fetch_token(
                Auth.TOKEN_URI,
                client_secret=Auth.CLIENT_SECRET,
                authorization_response=request.url)
        except HTTPError:
            return 'HTTPError occurred.'
        google = get_google_auth(token=token)
        resp = google.get(Auth.USER_INFO)
        if resp.status_code == 200:
            user_data = resp.json()
            email = user_data['email']
            user = User.query.filter_by(email=email).first()
            if user is None:
                user = User()
                user.email = email
            user.name = user_data['name']
            print(token)
            user.tokens = json.dumps(token)
            user.avatar = user_data['picture']
            db.session.add(user)
            db.session.commit()
            login_user(user)
            return redirect(url_for('index'))
        return 'Could not fetch your information.'

In the above code,

We check if a user is already logged in. If yes, we then redirect them to the home page.
Then we check if the url has an error query parameter. This check is done to handle cases where a user after going to the Google login page, denies access. We then return an appropriate message to the user.
We then check if the url contains code and state parameters or not. If these are not in the URL, this means that someone tried to access the URL directly. So we redirect them to the login page.
After handling all the side cases, we finally handle the case where the user has successfully authenticated our app.
- In this case, we create a new OAuth2Session object by passing the state parameter.
- Then we try to get an access_token from Google using

token = google.fetch_token(
    Auth.TOKEN_URI,
    client_secret=Auth.CLIENT_SECRET,
    authorization_response=request.url)

If error occurs, we return appropriate message to user.

After getting the token successfully, we again create a new OAuth2Session by setting the token parameter.
Finally we try to access the user information using

google = get_google_auth(token=token)
resp = google.get(Auth.USER_INFO)

The user information is a JSON of the form:

1
2
3
4
5
6
7
8
9
10
11
12
{
  "family_name": "Doe",
  "name": "John Doe",
  "picture": "https://lh3.googleusercontent.com/-asdasdas/asdasdad/asdasd/daadsas/photo.jpg",
  "locale": "en",
  "gender": "male",
  "email": "john@gmail.com",
  "link": "https://plus.google.com/+JohnDoe",
  "given_name": "John",
  "id": "1109367330250025112153346",
  "verified_email": true
}

After getting the user information, its upto us to how to handle the information. In the callback code, we handle the information by:

First we check if a user with the retrieved email is already in the DB or not. If user is not found, we create a new user and assign the email to it.
Then we set the other attributes like avatar, tokens and then finally commit the changes to DB.
After commiting the changes, we login the user using login_user(user) and then redirect the user to home page.

Full Code - app.py

To run the above code, first create the DB by opening the python console and executing:

from app import db
db.create_all()

Then create a test ssl certificate using werkzeug:

from werkzeug.serving import make_ssl_devcert
make_ssl_devcert('./ssl', host='localhost')

Finally create a file run.py in the same directory as app.py and add the following code and finally run python run.py:

from app import app
app.run(debug=True, ssl_context=('./ssl.crt', './ssl.key'))

Edit

From the comments, I have come to know that many of you have been running into problems with successfully running the flask server. It was a mistake from my side which I have realized in last few days.

In Step 6 above, while adding a redirect uri in the Google Project Console, I attached a screenshot in which, the redirect uri was http://localhost:5000/gCallback instead of it starting with https. So I have updated the screenshot in which I have added both http and https. You should add both http and https URLs as redirect uri. Also add both http://localhost:5000 and https://localhost:5000 in the Authorized Javascript Origins.

Also if you want to simply run the flask server on http instead of https, add the following 2 lines of code at the top of your app.py

import os
os.environ['OAUTHLIB_INSECURE_TRANSPORT'] = '1'
